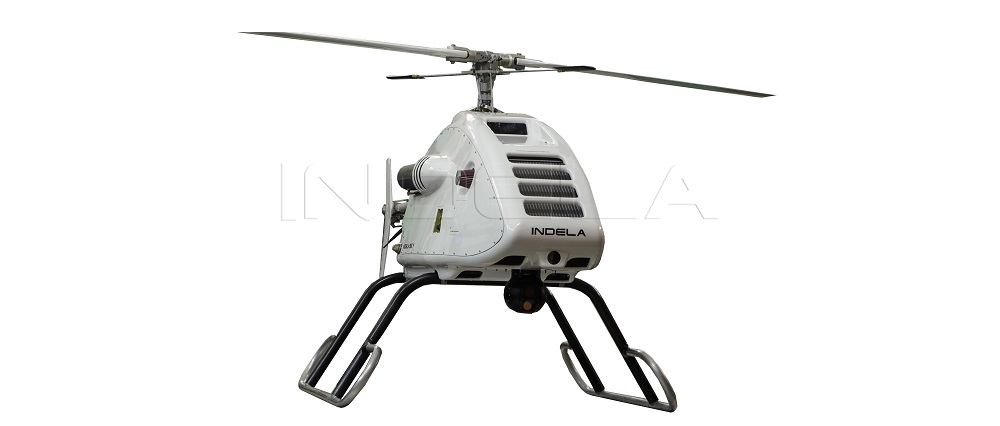

Unmanned erial vehicle INDELA-I.N.SKY

The unmanned aerial vehicles INDELA-I.N.SKY of a medium operating radius is designed to fulfill a wide range of practical tasks:

- twenty-four-hour monitoring of specified territories, water surfaces, industrial projects, vehicles, boats, yachts, ships, groups of people, individuals etc.;

- real-time video and infra-red information transmission to the ground control station at a distance of up to 50 km within line of sight from a ground control station during 5 hours;

uav helicopter Indela I.N.SKY

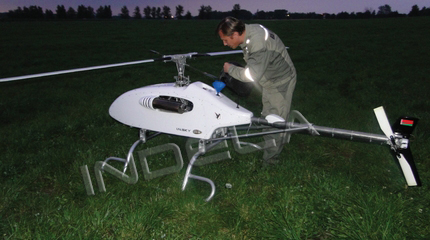

The construction of INDELA-I.N.SKY UAV, at the customer's option, allows installing additional equipment into the payload compartment, which expands range of application of the complex for other tasks. The UAV construction allows building up flight and navigation equipment and installation of different variations of payload. Ground control station (GCS) includes all the necessary components for flight programmed control and real time equipment diagnostics. The helicopter is based on a classic single-rotor scheme with a tail rotor.

Engine		rotory-piston engine
Takeoff power	kW	26
Fuel consumption	kg/h	5-8
Key geometric characteristics
Length Nose to Tail	mm	3052
Main rotor diameter	mm	3168
Height	mm	1346
Wheelbase	mm	1180
Weight data
Maximum takeoff weight	kg	140
Weight	kg	90
Fuel-carrying capacity	kg	25
Payload weight, kg	kg	25
Basic flight characteristics
Cruising speed at ground level	km/h	70
Static ceiling	m	1500
Maximal vertical speed	m/s	5
Flight duration (100-500 m high)	h	up to 5
Wind (takeoff and landing)	m/s	10
Operating temperature	С	-35 … +55

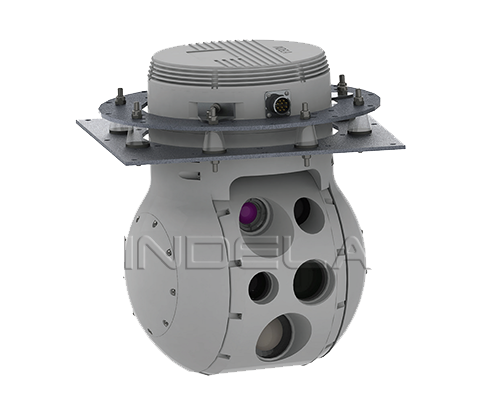

«I.N.SKY» use gyro-stabilized optoelectronic system «INDELA OG-20».

Biaxial gyro-stabilized suspension «INDELA OG-20» ensures high level of stabilization due to the up-to-date gyroscopes of the leading manufacturers and modern software.Three-dimensional inertial system is based directly on an optic installation.Neural net, data and knowledge base, high-performance computer and high-class software all together form an object recognition system. This system recognizes and constantly carries out videotracking of the objects, selected by the operator. Adjustable OSD supplies a wide range of parameter settings and additional symbols. Adjustable parameters: composition, isposition, transparency, colour.

Resolution		1920х1080
Quantity of active pixels		2 000 000
Image sensor		1/3–type CMOS
Signal system		HD:1080p/29.97, 1080i/59.94, SD:NTSC/PAL
Lens		f = 5.1 mm (wide), 51.0 mm (tele)F 1.8(wide), F 2.1 (tele)
Optical magnification, not less than		20x
Digital magnfication		10х (200 with optical)
Viewing angle		54.1 (wide), 2.9 (wide)
Synchronizing system		internal
Signal/noise ratio		more than 50dB
Camera sensitivity, not less than		1,7 Lux
Signal/noise ratio		more 50 dB
Intensfication		Auto/Manual/Max(from -3 dB to 28dB, 2 steps)
Background light compensation		Yes
Focusing system		Automatic/Manual
Improved noise clipping		Yes
Automatic stabilization of camera’s optical axis at a set direction in the geocentric coordinate system, being at rest, with accuracy, not worse than		1,5°
Infrared camera with high resolution
Type of system		uncooled
Type of sensor		Infrared thermal imaging device, 640 x 512 VOx Microbolometer
Size of pixels		25 μm
spectral range		7.5 – 13.5 μm
Image inversion and return		2х and 4х digital zoom
Digital improvement of image		2х and 4х digital zoom
Detention of the imaging for th specified coordinates		yes
Lazer range finder		1500 m, ±1 m

GROUND CONTROL STATION:

Ground control station NDELA-GCS is used for UAV ﬂight and useful load control, for the reception, processing, representation and recording of the data, received from an UAV and support of data exchange with external consumers.
