INDELA SIS1

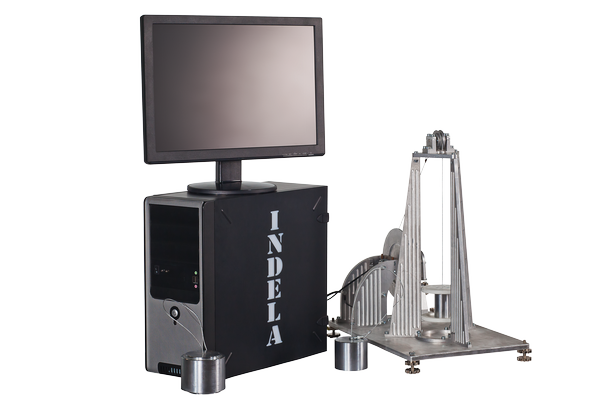

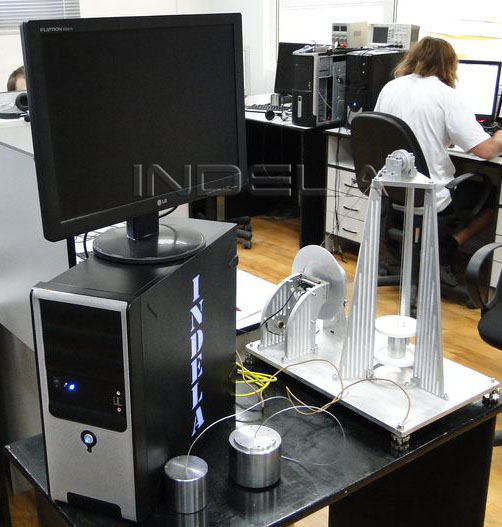

Computer test bench
Description
Test bench resources:
- Automatic and manual operation of servodrive testing
- Automatic and manual adjustment of servodrive parameters
- Programming of test sequences
- Presentation of servodrive status in charts
- Recording and analysis of the operation of the servodrive being tested
- Saving results of the servodrive test
- Printing out the results of the servodrive test
- PC Connection through USB interface
- Adjustable interface
- Maximum measurement inaccuracy within ±2%
Computer test bench designed for troubleshooting and checking according to manufacturer specification of any models of servodrives, overall dimensions of which do not exceed 150Х150х150 mm. Allows to conduct hours-long tests with load-carrying moments from 0,3 to 10N*m.

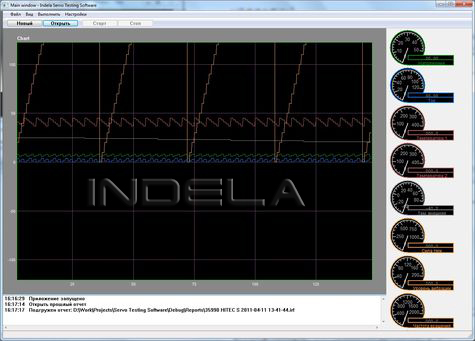

Software allows following in real time the value of measuring parameters, both in charts, and as an indicator.
Limiting values of measured parameters
| Supply voltage | V | 4,8 – 27 |
| Current strength | А | 0 – 15 |
| Air temperature | C | -25 - 100 |
| Rotation angle | degrees | 0 - 360 |
